Wall Jack

GF-91

Laticrete

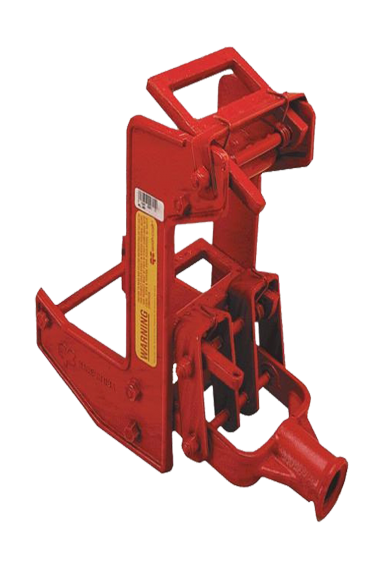

The Wall Jack is used to raise walls and beams and tighten flooring and decking. Made of heavy duty, malleable cast iron, the wall jack rides up and down on a 2-by-4-foot pole, working like a car jack for dozens of construction uses. To lift walls and beams insert a length of ¾ inch (OD) pipe (not included) to act as a lever. The Wall jack has a capacity of 1,000 pounds with the use of a 2x4 (actual measurement is 1½" by 3½") made of clear, straight-grained fir wood, free of knots and defects. The jack is intended to meet OSHA safety regulations when instructions are carefully followed. The Wind Hook Accessory Kit provides a complete wall lifting system and can be purchased separately and includes base plate and wind hook cable assembly.
(click image to enlarge)
Quick Overview
  • Constructed of heavy duty malleable iron castings
  • Designed for use with one 2 x 4 pole
  • Capacity: 1000 lbs. per jack
  • For use with 1” OD steel pipe
Interested in this item or want more information?

Phone:
Email:

Can't find what you want? Give us a call and we can help you find it.
Details

Part #:

2601

Constructed of heavy duty malleable iron castings
Designed for use with one 2 x 4 pole
Capacity: 1000 lbs. per jack
For use with 1” OD steel pipe
Additional Information
Manufacturer: Laticrete
